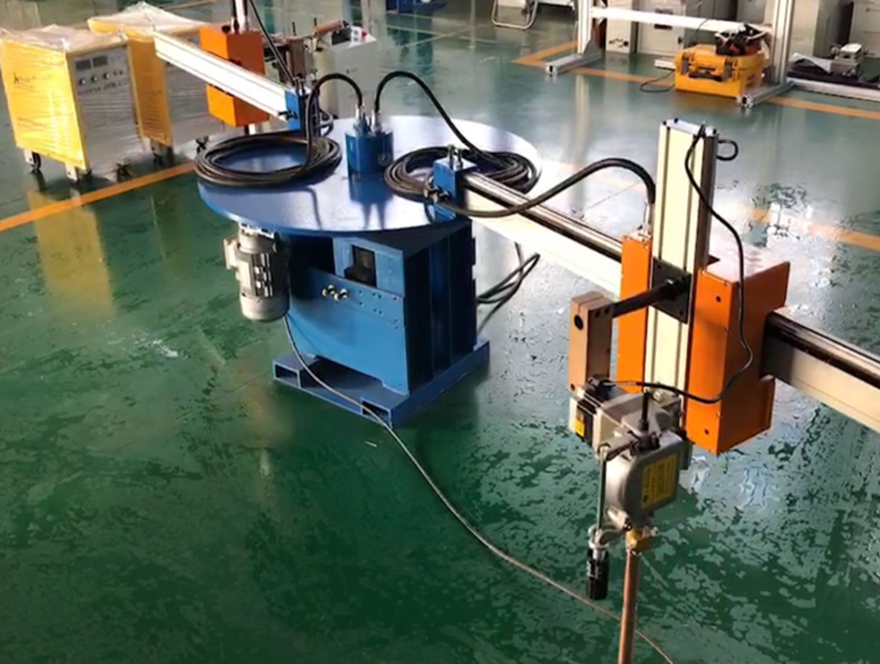

Mill Disc Hardfacing Welding Machine

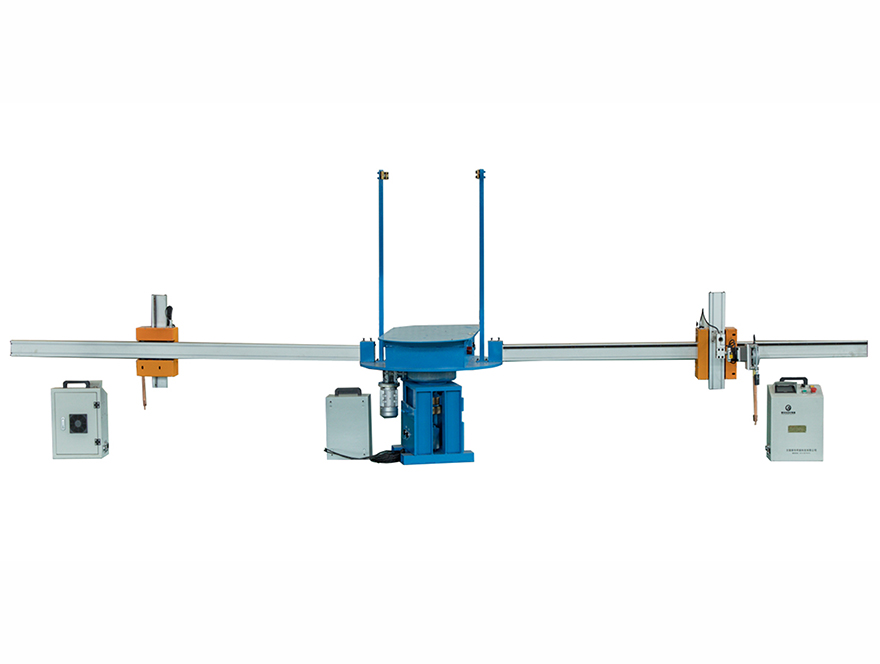

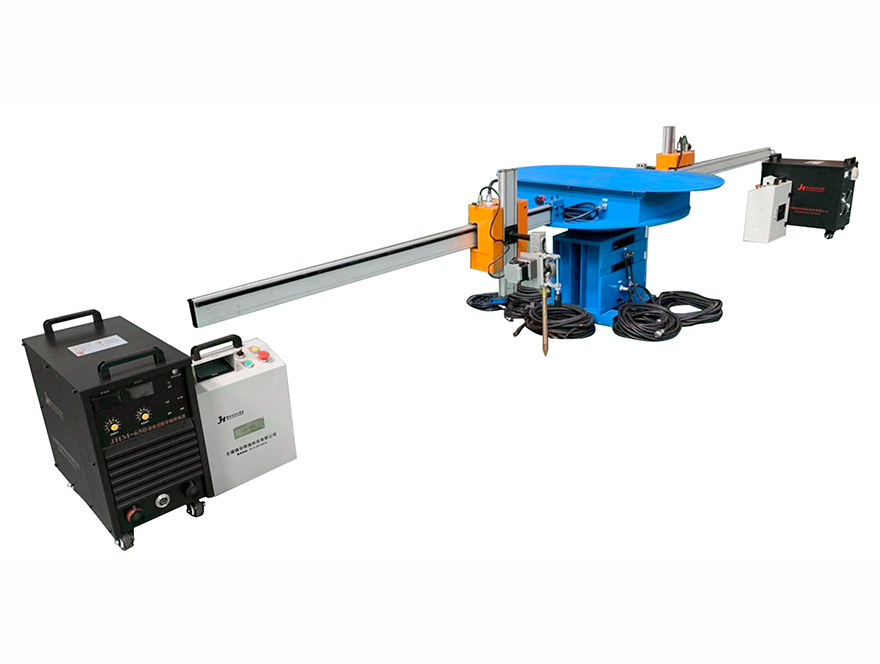

JH-360DEG can weld the grinding plate off-line by cooperating with off-line welding equipment, in which JH-360DEG is used for rotating, rotating conducting and off-line equipment as welding machine. It consist of mechanical part, rotating platform, first stage RV deceleration, second stage rotating platform and rotating conductive part during welding.

立即咨询下一款产品

规格

No	Description	Parameter
1	Maximum Diameter	Φ6500mm
2	Maximum Loading Weight	2000kg
3	Welding Torch Height	500mm-1500mm
4	Hardfacing Single Layer Thickness	2.5-6.5mm
5	Welding Oscillation Range	5-100mm
6	Welding Oscillation Speed	0.1-3.5M/min
7	Rotation Speed	0.05-1.2 r/min
8	Welding Voltage	20-35V
9	Welding Current	300-800A

优势

One machine with two function, air carbon gouging and hardfacing welding.

Automatic circular welding, oscillation welding, linear welding, diamond pattern automatic welding

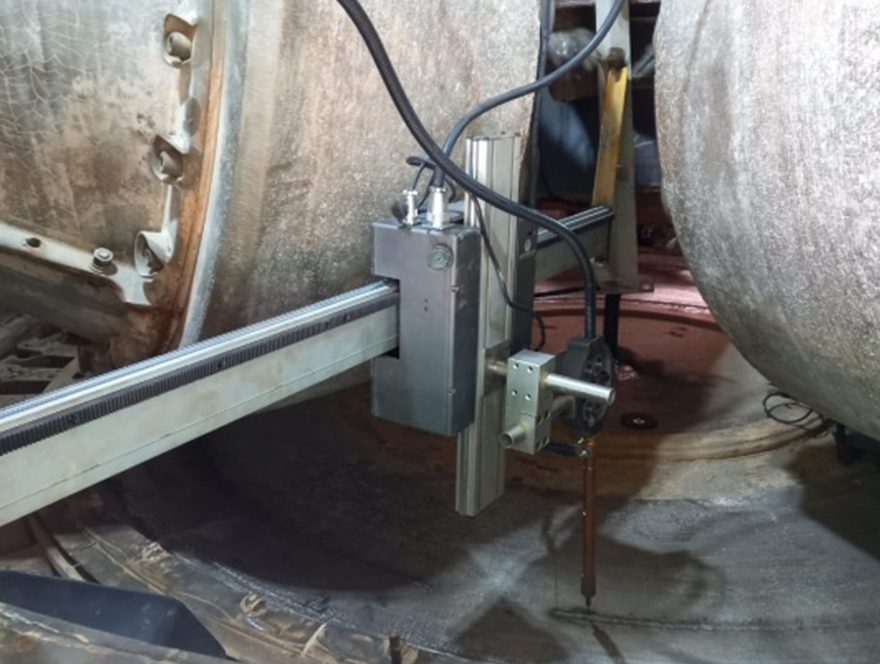

In situ application for minimum downtime

PID closed-loop operation

Chromium pick copper open arc surfacing welding torch, can work continuously for 24 hours
