耐磨堆焊设备

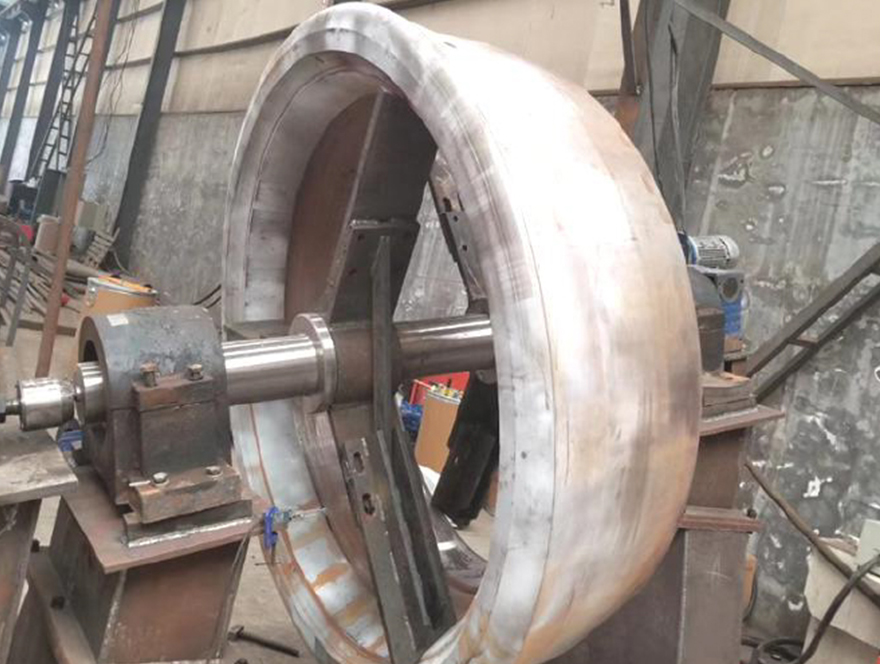

JH-350SL has the both function of automatic carbon arc gouging and hardfacing welding. It can control synchronous surfacing of roller press, vertical mill, continuous casting roller and coal mill roller. The machine is capable to achieve the welding job that including automatic circular welding, oscillation welding, linear welding, diamond pattern automatic welding. Standard Bas-Mastering mode is adopted for the equipment, which can be controlled by Ethernet / IP, controller area network and PROFIBUS communicates with the host computer through networking.
规格
| No | Description | Parameter |
| 1 | Length of X Axis | 600mm |
| 2 | Effective Travel Height | 500mm |
| 3 | Length of Y Axis | 3000mm |
| 4 | Effective Travel Length | 2800mm |
| 5 | Power Supply | 3 Phase, 380V±10% |
| 6 | Frequency | 50Hz |
| 7 | Rate of Welding Power Source | 1250A |
| 8 | Working Environment Temperature | -10℃～+40℃ |
优势
One machine with two function, air carbon gouging and hardfacing welding.
Automatic circular welding, oscillation welding, linear welding, diamond pattern automatic welding
In situ application for minimum downtime
PID closed-loop operation
Chromium pick copper open arc surfacing welding torch, can work continuously for 24 hours
